About Operating Microscope

Operating Microscopes are essential medical devices used to provide magnified, high-resolution visualization during surgical and diagnostic procedures. These microscopes help surgeons perform delicate operations with enhanced precision, accuracy, and safety. Different types of Surgical Operating Microscopes are designed for specific medical specialties, including ENT, Ophthalmology, Dental, Neuro, Plastic Surgery, and Microsurgical applications.

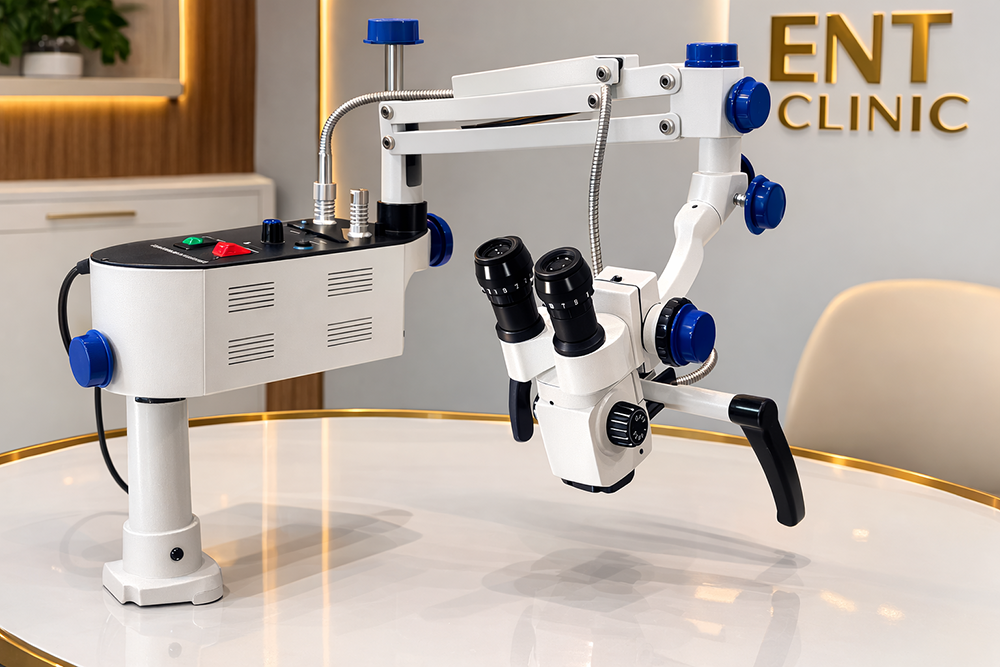

As leading Roslane Meditech Operating Microscopes Manufacturers and Exporters from India, we offer a comprehensive range of advanced operating microscopes designed to meet the diverse requirements of healthcare professionals worldwide. One of the most commonly used surgical microscopes is the ENT Operating Microscope, which features a 90-degree straight binocular head for comfortable viewing during ear, nose, and throat procedures. To accommodate different working distances and surgical requirements, objective lenses with focal lengths of 175mm, 200mm, 250mm, 300mm, and 400mm are available. The focal length can be easily adjusted by attaching the desired objective lens to the bottom of the optical head.

Another widely used category is the Ophthalmic Operating Microscope, specially designed for eye surgeons performing cataract surgery and other microsurgical procedures involving the human eye. These microscopes provide exceptional optical clarity and precise illumination for critical surgical tasks.

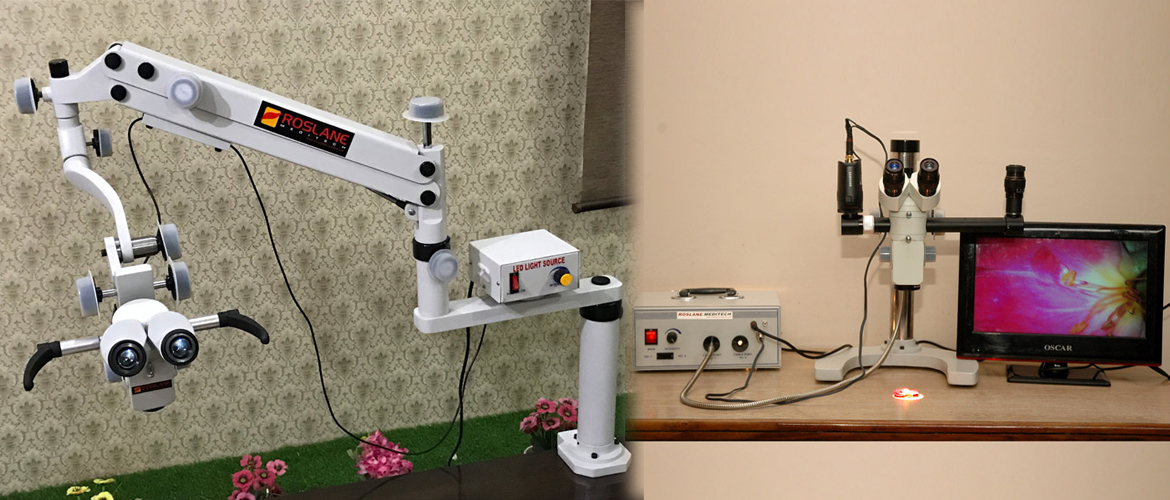

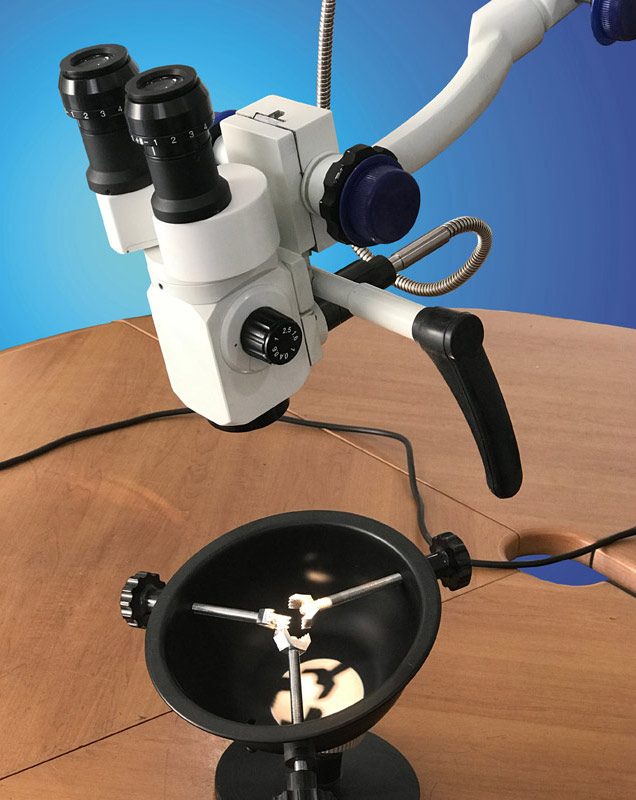

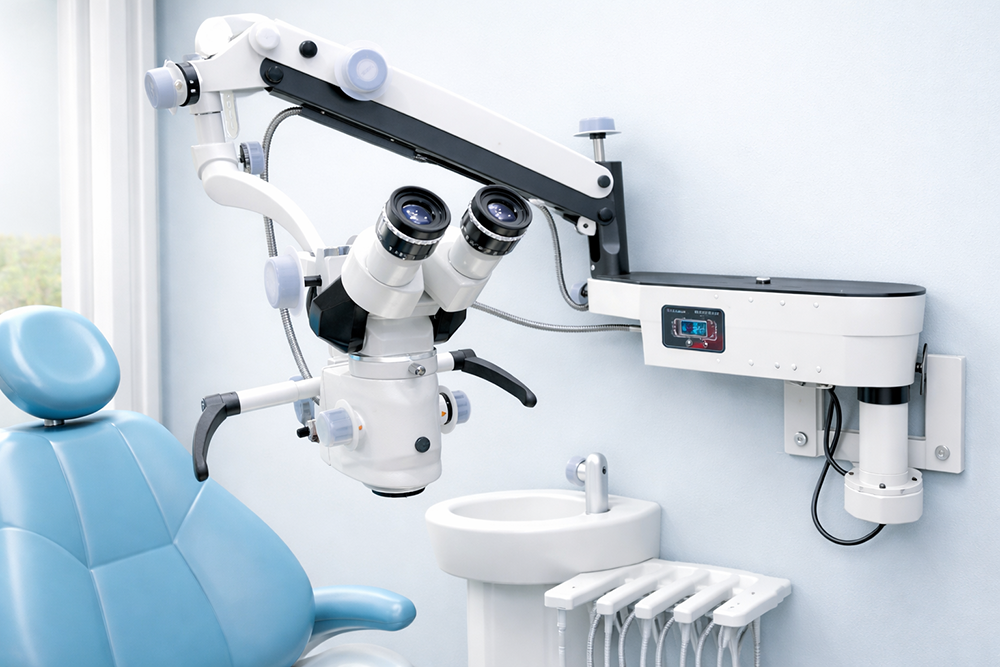

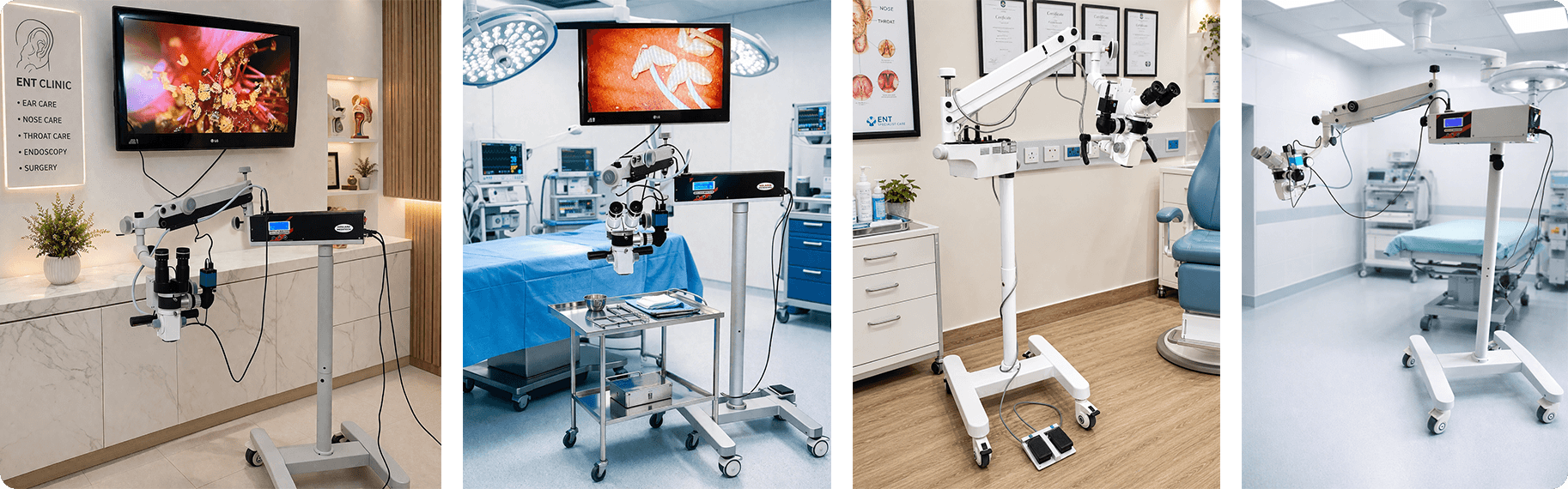

Roslane Meditech, recognized among trusted Operating Microscopes Manufacturers and Exporters from India, offers cost-effective models in Floor Stand, Wall Mount, and Table Clamp configurations. Our operating microscopes are widely used in Ophthalmology, ENT, Dental Surgery, Neurosurgery, Plastic Surgery, and specialized Wet Lab training applications.

With over 18 years of manufacturing and export experience, we have successfully supplied operating microscopes to more than 80 countries worldwide. Our products are known for their superior optical performance, durable construction, ergonomic design, and are as per internatinoal standards.

Specifications Operating Microscope

Microscope Section

Binocular Tubes: 45 degree Inclined OR 90 degree Straight or 0 To 180 degree Inclinable

Eye Pieces: 12.5x W.F/16mm Dioptric Adjustment

Magnification Changer: 3 Step Zoom (7.5x,12.5x & 20x)

OR 5 Step Zoom (5x, 7.5x, 12.5x, 20x & 30x)

Objective: F=200/250/300/400

Working Distance: 200/250/300/400mm

Interpupillary Distance Adjustment: 55mm to 75mm

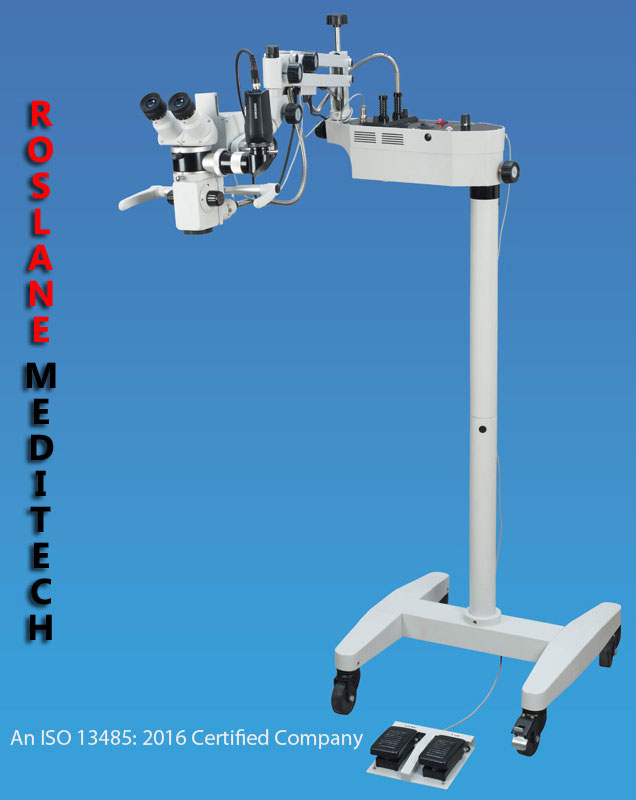

Manual Focusing or Motorized Foot Focusing system

General Information

Base Size: 600mm x 550mm

Weight: 70kg approx

Height: 1550mm

Electrical Power: AC 220V / 110V

Optional Accessories

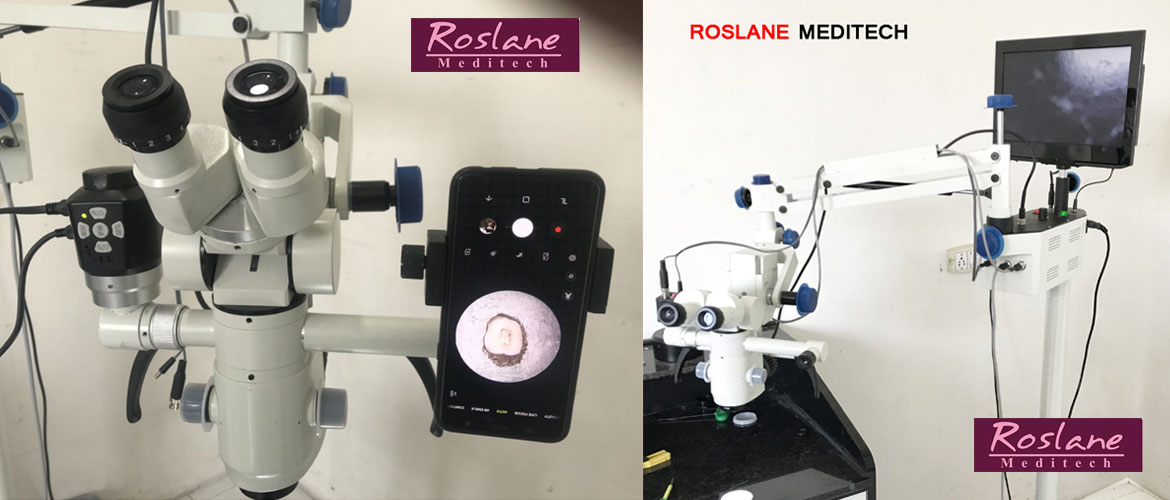

Beam Splitter with Camera Mount

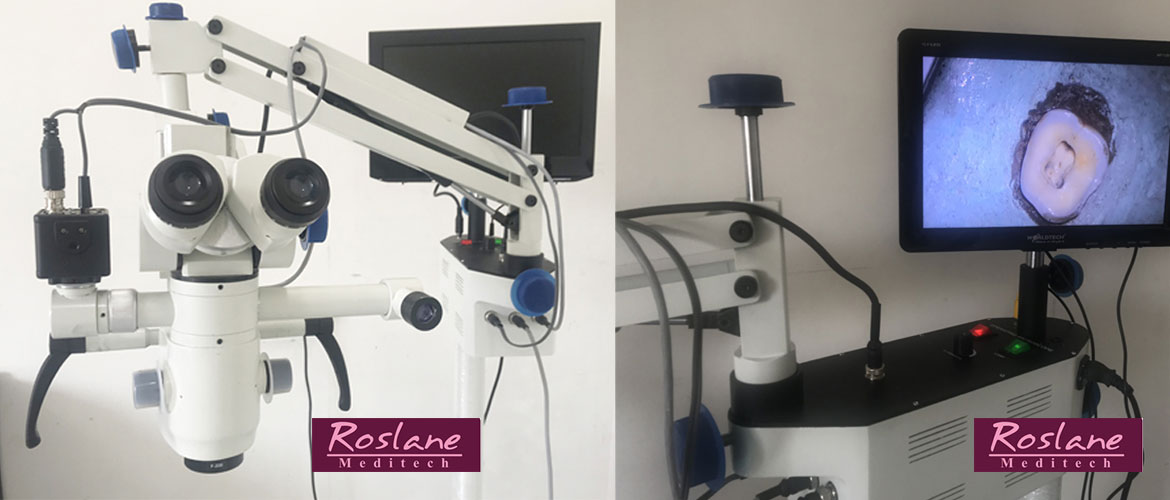

Digital CCD Camera

Monocular Assistant Tube

Illumination Section

Type: By Optical Light Guide System

Light Source: Twin 24V / 250W

Halogen Lamp OR 120W Digital LED Illumination

Illumination Control: Continuous Adjustment

Field of Illumination: 70mm

Filter: Cobalt Blue, Red-Free, Heat Absorbing Filter

Stand Section

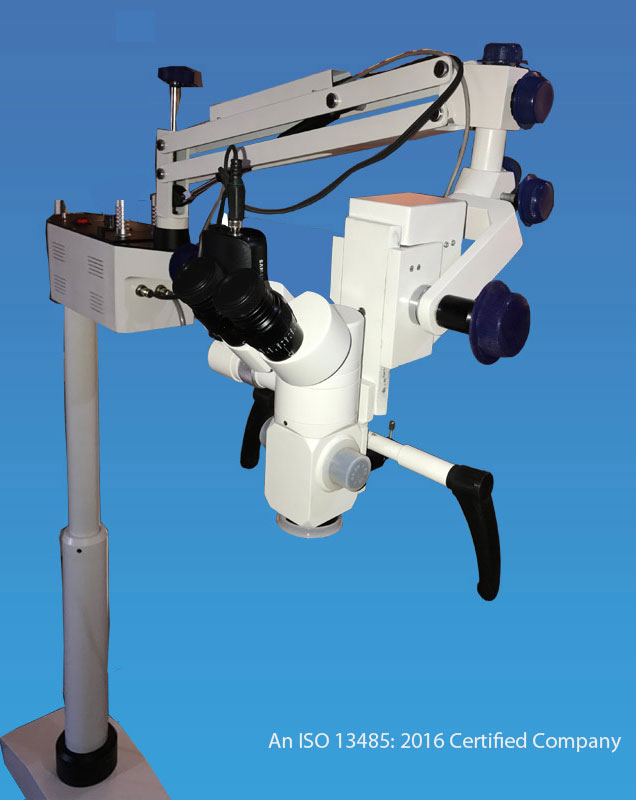

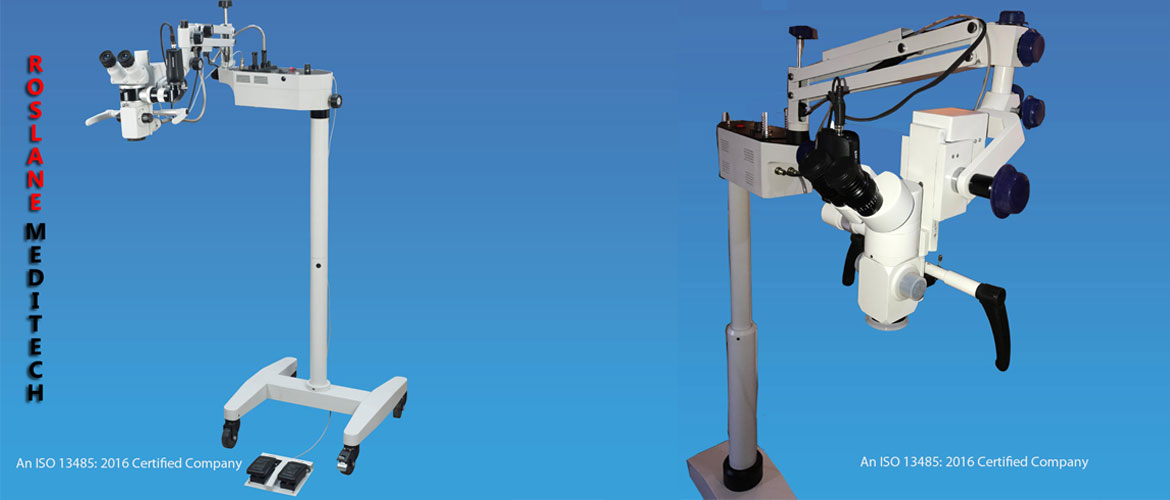

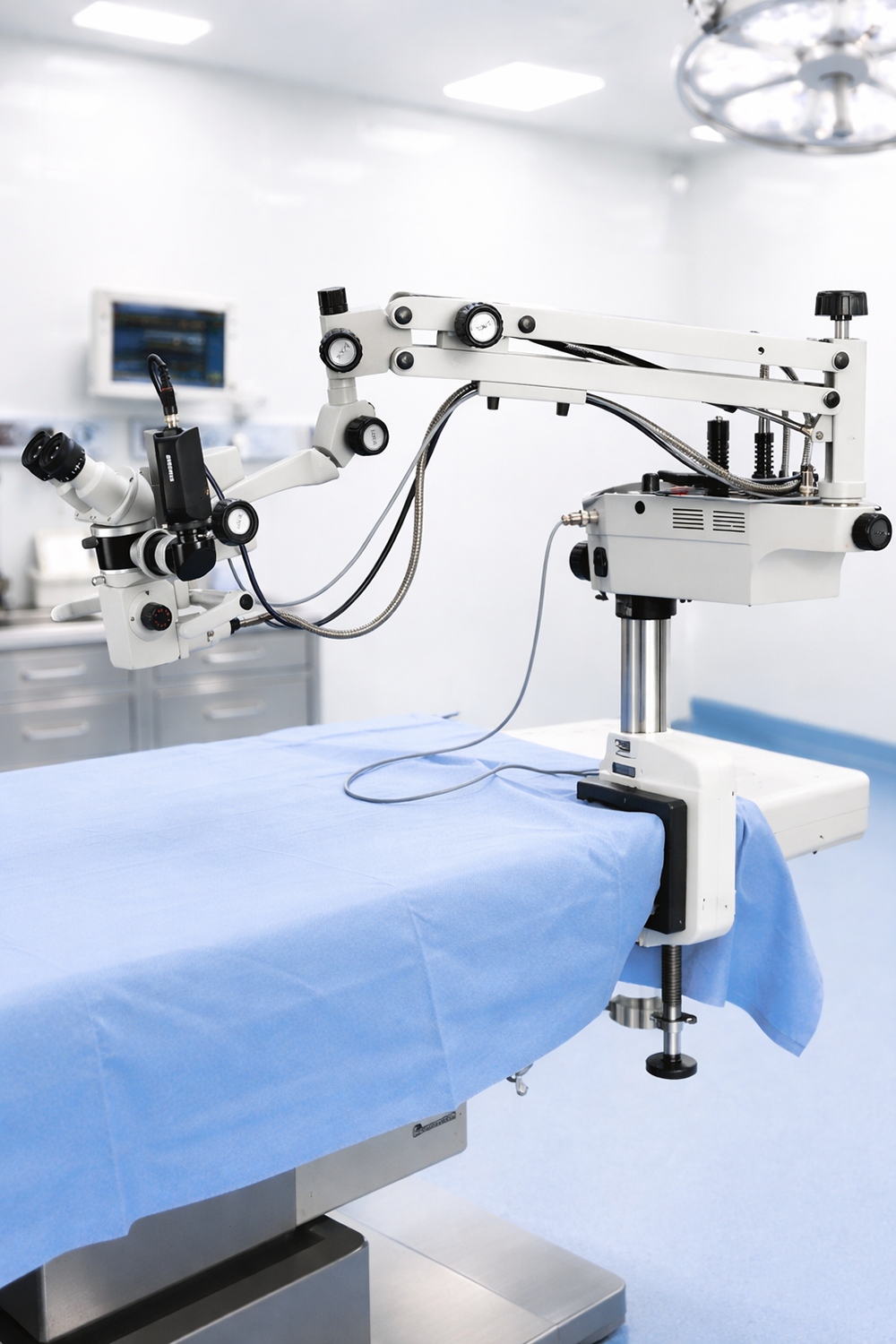

Type: Floor Stand / Table Clamp / Wall Mount

Vertical Range of Counter Balanced Arm: 400mm
